Lab and Medical Prefabricated Ceiling Service Chase

  • 1
  • 2
Ideal for laboratory and medical facilities, the pre-fabricated ceiling service chase is a clean and streamlined system that will include any services your project required.  Common services are electrical, data, and medical gas outlets.

Features
  • Pre-installed medical gas outlets
  • Pre-installed electrical outlets
  • Optional blanks to add additional services.
  • Available different lenghts
  • 45 degree track system
  • Extruded aluminum surface
  • All panels are removable
  • Maximum unit length: 100’’
.
THIS IS A CUSTOM BUILT TO ORDER PRODUCT SO PLEASE CONTACT US AND WE ARE HAPPY HELP FIND THE BEST FIT!
Price Each: Call for Price
Quantity:

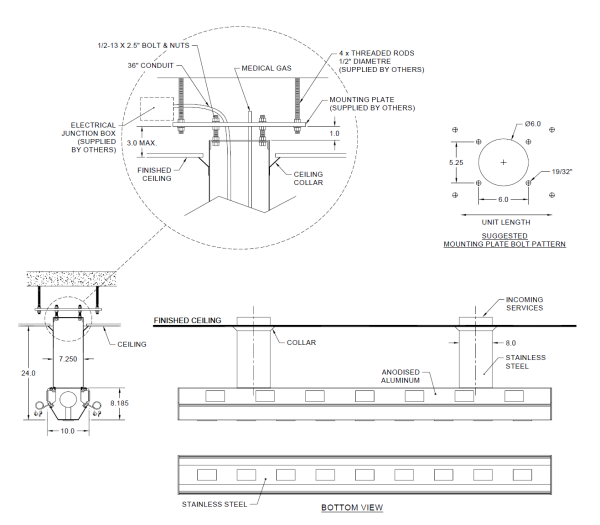

Construction Specification
This Ceiling Service Chase unit shall be constructed of .094" thick 6063-t 5 alloy, extruded aluminium for all structural frame members. All exposed aluminium surface shall be clear anodized. Each side corner shall be equipped with Medical Design’s 45º track system as an integral part of the main frame, designed to manage hospital equipment and accessories horizontally.
Bottom faceplate shall be made of stainless steel sheet and shall have pre-punched openings for installation of medical gas outlets, electrical and communication devices. End caps shall be clear anodized and light almond powder coated. All panels shall be removable by means of mounting stainless steel screws located on each side. This product is cULus listed.

Medical Gas
Medical gas outlets shall be furnished pre-installed within the bottom faceplate. Connections of all medical gas
outlets are hard piped throughout the length of the unit and terminated with copper tubing located 6’’ above the ceiling level. All components shall comply with National Fire Protection Association (NFPA 99c) & CRN (BNQ 5710-500, CSA Z305.1/B51-95).

Electrical Equipment
Electrical devices shall be supplied and pre-wired by Medical Design. Wiring shall run through metal raceway and terminate at the top of the unit connected to the Hospital electrical system. Conductors shall be No 12 stranded RW-90 copper wire for normal and emergency power circuits. All devices shall be grounded with #10 AWG green jacket stranded copper wire. All electrical receptacles are NEMA 5-15/20R, 125 volts AC, hospital grade and comply with CSA and are cULus listed. Emergency receptacle

Communication
Communication devices shall be supplied and installed by others. Provisions for devices shall be coordinated with Medical Design.

Site Installation
All units shall be installed in accordance with Medical Design’s installation instructions. The mechanical and electrical contractor shall provide the final connection to the hospital System. The contractor has the responsibility to insure that every unit is subject to a final site inspection in compliance with all National, State and Local Codes.
