Medical Gas Security Console Boxes

  • 1
  • Photo Dec 17, 8 32 25 AM
  • Photo Dec 17, 8 32 17 AM

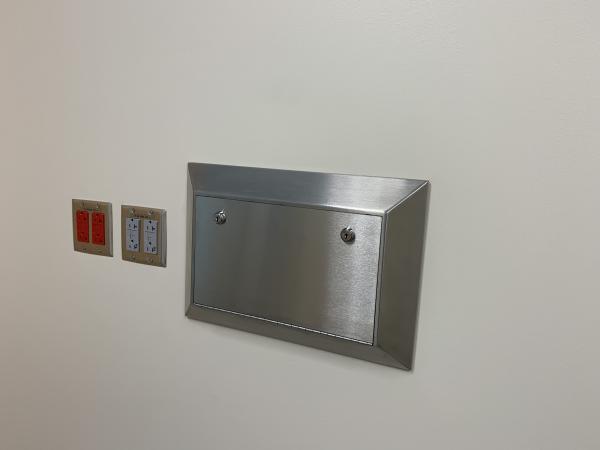

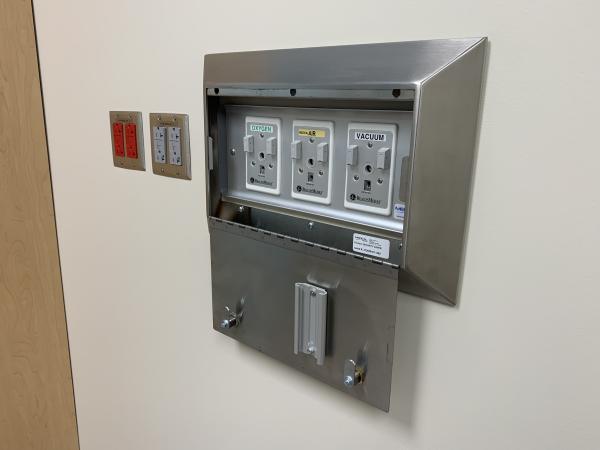

Protect and secure your patients and staff with the stainless steel security door.  Behavioral health secure holding units often have medical gases such as oxygen, air, and vacuum wall outlets that can be tampered with.  The security console box is a recessed unit built to protect and secure the medical gas and electrical services from unwanted tampering.  It can include the medical gas and electrical services as a complete, single point connection unit.  If your services are existing and need to be secured, the stainless steel door with lock and key can be custom ordered to secure existing services.

Features:
  • Recessed horizontal medical headwall box with services
  • Custom Stainless steel door with lock (available with or without the recessed medical gas box)
  • Up to 5 services per security door
  • NFPA Compliant
THIS IS A CUSTOM BUILT-TO-ORDER PRODUCT.  PLEASE SUBMIT AN RFQ AND WE WILL GET IN-TOUCH WITH YOU ABOUT YOUR PROJECT.
Price Each: Call for Price
Quantity:

Each recessed security console box is supported by a galvanized steel bracket, which shall be attached to the structural wall by means of four screws.  The fascia front assembly of the console box is made from extruded, clear anodized aluminium, for a clean appearance. The back box is made from galvanized steel, 0.06” thick.

The medical gas piping terminates as blank capped ends 5” above the console back box.  All specified devices are factory installed in the console backbox. The electrical devices are separated, but they are not pre-wired.

The console box shall be constructed of 16 gauge steel finish. Affixed to the opposing sides of the box will be two adjustable steel brackets for the purpose of mounting to structural support. The steel brackets shall accommodate various finished wall thicknesses of between 3/8” and 1 - 1/4” and shall be field adjustable.

The security door frame assembly shall be constructed of stainless steel and shall be mounted to the wall by standard screws. The door assembly shall be manufactured from stainless steel and attached to the frame with a stainless steel hinge. Access to the console shall be by opening the stainless steel door by means of a lock and key.

NOTE: Exact dimensions are to be determined by the customer. The console is UL Listed to U.S. and Canadian safety standards.
